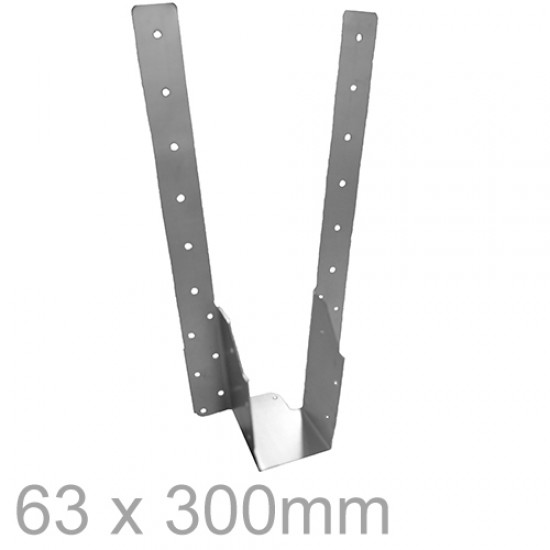

Woody Standard Joist Hanger 63 x 300mm
Woody Standard Joist Hanger 63 x 300mm
- Product Code: U1391
- Delivery Time: 1 - 2 days
- Brand: Teco
- Model and Size: STD - 63x300
- Weight: 0.20kg
Woody Standard Joist Hanger 63 x 300mm
63x300mm Woody Standard Joist Hanger is a timber-to-timber joist hanger crafted from 1mm thick pre-galvanized mild steel, adhering to the specifications outlined in BS EN 10327:2004 DX51D+Z275. It's also offered in stainless steel. This hanger incorporates a base tag, designed to expedite precise installation and prevent unnecessary rotation. The tag can be easily bent if not needed.
Long-term safe working load = 6 kN. The hangers have undergone meticulous testing by Ceram Research. Test results are available upon request.
Fixing Instructions for 63x300mm Woody Standard Joist Hanger:
- Use 30mm x 3.75mm Square Twisted nails for hole nailing during installation.
- For stainless steel products, utilize 30mm x 3.75mm stainless steel annular ring shank nails.
- Always ensure compatible corrosion-resistant fixings are used. Do not mix galvanized fixings with stainless steel products.
- The tag can be bent if unnecessary.
Specification:
- Joist bearing: 50mm.
- Also available in Stainless Steel.
- Tested by Ceram Research.
