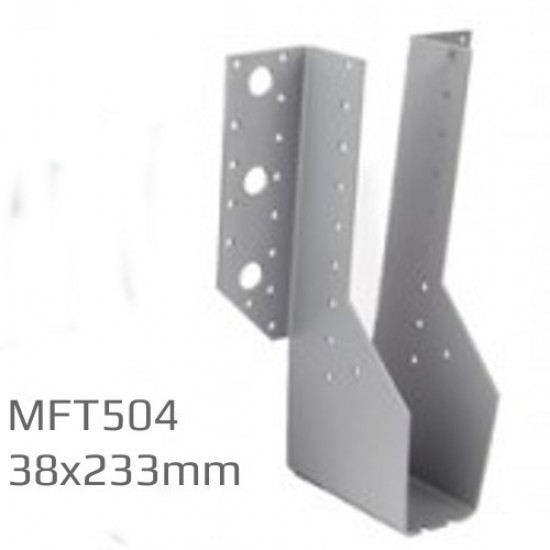

Multifunctional Joist Hanger 38 x 233mm

38mm x 223mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber fixings. It features strategically positioned base location tabs and an associated hole configuration, including 2 x M12 bolt holes and 19 x nail or screw holes. It accommodates various fastening methods such as bolting, screwing, coach screwing, or nailing. The established long-term safe working load remains 10.45 kN.

Installation Guidelines

During installation, it is recommended to utilize 30 x 3.75 Square Twisted nails for securing the designated holes. To prevent undesirable rotation, ensure the hanger extends beyond at least half (60%) the depth of the supported member.

Specifications

• Location tabs aid in swift and precise alignment of the hanger.
• M12 bolt holes facilitate sturdy fastening.
• An 85mm bearing ensures optimal load distribution.
• Also offered in a Stainless Steel variant for enhanced durability.

Thoroughly examined and certified by Ceram Research.
