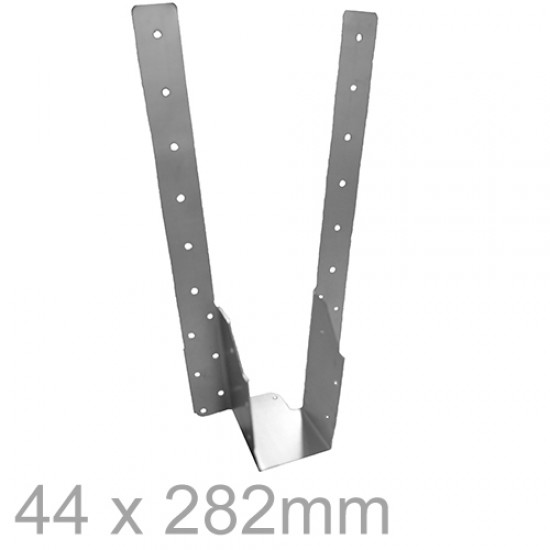

Woody Standard Joist Hanger 44 x 282mm
Woody Standard Joist Hanger 44 x 282mm
- Product Code: U1390
- Delivery Time: 1 - 2 days
- Brand: Teco
- Model and Size: STD - 44x282
- Weight: 0.21kg
Woody Standard Joist Hanger 44 x 282mm
44x282mm Woody Standard Joist Hanger is a timber-to-timber joist hanger crafted from 1mm thick pre-galvanized mild steel, adhering to the specifications outlined in BS EN 10327:2004 DX51D+Z275. It's also offered in stainless steel. This hanger incorporates a base tag, designed to expedite precise installation and prevent unnecessary rotation. The tag can be easily bent if not needed.
Long-term safe working load = 6 kN. The hangers have undergone meticulous testing by Ceram Research. Test results are available upon request.
Fixing Instructions for 44x282mm Woody Standard Joist Hanger:
- Use 30mm x 3.75mm Square Twisted nails for hole nailing during installation.
- For stainless steel products, utilize 30mm x 3.75mm stainless steel annular ring shank nails.
- Always ensure compatible corrosion-resistant fixings are used. Do not mix galvanized fixings with stainless steel products.
- The tag can be bent if unnecessary.
Specification:
- Joist bearing: 50mm.
- Also available in Stainless Steel.
- Tested by Ceram Research.
Timber-to-Timber-Joist-Hangers_data_sheet.pdf
Brand: Teco
Model and Size: FHM47/125
Delivery Time: 1 - 2 days
47mm x 125mm Single Piece Joist Hanger is designed to support timber joists built into brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber-to-timber applications by securely fixing the masonry flange to timber or steel beams using appropriate fixings..
Brand: Teco
Model and Size: WR63X200R100
Delivery Time: 3 - 5 days
63mm x 200mm Welded Return Joist Hanger R100mm, designed for a range of applications and installation scenarios, similar to the standard Masonry Joist Hanger. The return feature provides enhanced lateral support by wrapping around the rear of masonry or timber elements. Standard configuration includ..
Brand: Teco
Model and Size: WM90x225
Delivery Time: 3 - 5 days
90x225mm Masonry Joist Hanger with Welded Construction
Elevate the support for your timber joists integrated into brick or block walls with our remarkable 90mm x 225mm Masonry Joist Hanger. Engineered to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suitable ..
Brand: Teco
Model and Size: FHM50/200
Delivery Time: 1 - 2 days
50mm x 175mm Single Piece Joist Hanger is designed to provide robust support for timber joists integrated into brick or block walls with a minimum crushing strength of 3.5N/mm. It is equally suitable for a range of timber-to-timber applications, ensuring the masonry flange is securely affixed to the..
Brand: Teco
Model and Size: WM100x150
Delivery Time: 3 - 5 days
100x150mm Masonry Joist Hanger with Welded Construction
Elevate the support for your timber joists integrated into brick or block walls with our remarkable 100mm x 150mm Masonry Joist Hanger. Engineered to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suitabl..
