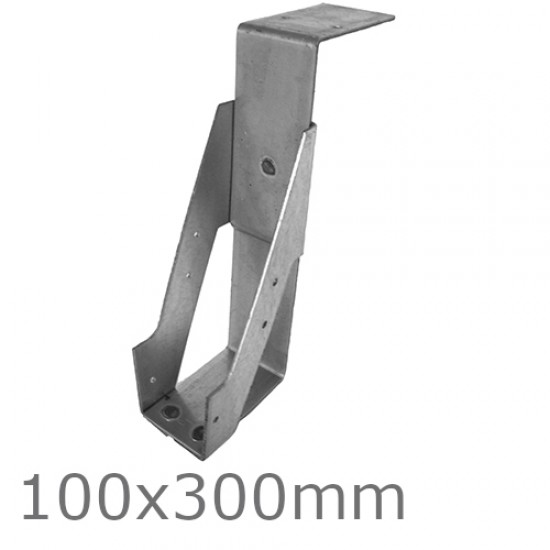

Welded Masonry Joist Hanger 100 x 300mm

Welded Masonry Joist Hanger 100 x 300mm
Welded Masonry Joist Hanger 100 x 300mm
  • Product Code: U1372
  • Delivery Time: 3 - 5 days
  • Brand: Teco
  • Model and Size: WM100x300
  • Weight: 1.27kg
Request product details

Welded Masonry Joist Hanger 100 x 300mm

100x300mm Masonry Joist Hanger with Welded Construction

Elevate the support for your timber joists integrated into brick or block walls with our remarkable 100mm x 300mm Masonry Joist Hanger. Engineered to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suitable for timber-to-timber and timber-to-steel applications. Safely attach the masonry flange to your timber or steel beams using appropriate fixings, ensuring a long-term safe working load of up to 3.5 kN.


Effortless Installation of the 100x300mm Masonry Joist Hanger

  • The back plate of the hanger should lie flat against the vertical masonry support.
  • The masonry flange should never be placed in dry slots.
  • Masonry flange should have a minimum of 3 courses (675mm masonry) above.
  • Use correct strength mortar as per British Standard.
  • Both supporting and above masonry should be allowed to mature before any load is applied.
  • Joist should be square cut and sit tight to the back of the hanger - maximum gap permitted is 6mm.
  • Nail the side flanges with 30 x 3.75mm galvanised square twist nails or equivalent.
  • To provide lateral restraint, HD Straps should be used.
  • Use appropriate corrosion-resistant fixings. Do not use galvanised fixings with stainless steel products or vice versa.

Product Specifications

  • Constructed from Pre-Galvanized Steel S280GD+Z275.

Certifications

  • Manufactured to meet the EN 845-1:2013 standard.
  • Galvanized steel conforms to EN10346 DX51D Z275, while grade 1.4301 austenitic stainless steel complies with EN 10088-2.
  • Independently tested and approved by CERAM Research Ltd Notification Body No.1289.
