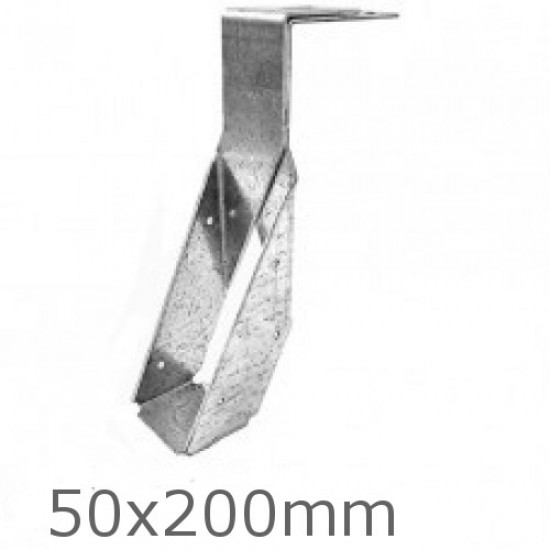

Single Piece Masonry Hanger 50 x 200mm

50mm x 175mm Single Piece Joist Hanger is designed to provide robust support for timber joists integrated into brick or block walls with a minimum crushing strength of 3.5N/mm. It is equally suitable for a range of timber-to-timber applications, ensuring the masonry flange is securely affixed to the timber or steel beams using appropriate fixings. The straight top flange, along with a lock plate, enables the hanger to be effortlessly transformed into a straddle or hook-over configuration, with no need for specialized equipment. The hanger is rated for a long-term safe working load of 5.4 kN.

FIXING INSTRUCTIONS for 50x175mm Single Piece Masonry Hanger

• The back plate of the hanger should rest flat against the vertical masonry support.
• Masonry flange should have a minimum of 3 courses (675mm masonry) above.
• Both supporting and above masonry should be allowed to cure before any load is applied.
• Joist should be square-cut and sit snugly against the back of the hanger - maximum gap allowed is 6mm.
• Nail the side flanges with 30 x 3.75mm galvanized square twist nails or equivalent. Stainless steel hangers should be nailed using 30 x 3.75mm annular ring shank nails.
• Use HD straps for lateral restraint.
• The masonry flange should always be securely fixed or adequately embedded and should never be placed in dry slots.
• Ensure appropriate fixings are used.
• Always use compatible corrosion-resistant fixings; avoid mixing galvanized fixings with stainless steel products.
• Use mortar of correct strength as per British Standard.

SPECIFICATION

• Galvanized steel to EN 10346 DX51D Z600.
• Tested by CERAM Research Ltd Notification Body No.1289.
• Manufactured to EN 845-1:2013.
