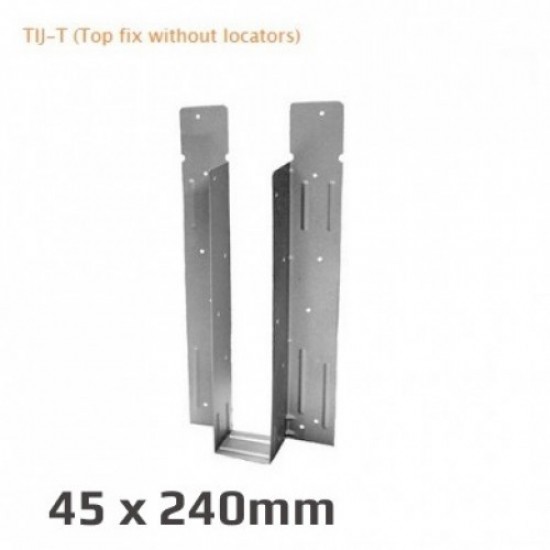

Top Fix I-Joist Hanger 45 x 240mm
Top Fix I-Joist Hanger 45 x 240mm
- Product Code: U1481
- Delivery Time: 1 - 2 days
- Brand: Teco
- Model and Size: TIJ-TI - 45x240mm
- Weight: 0.26kg
Top Fix I-Joist Hanger 45 x 240mm
45x240mm Top Fix I-Joist Hanger is an innovative new backer-free Joist Hanger designed for use with solid engineered wood products as well as I-Joists. It's engineered to offer a perfect balance between maximum load carrying capacity and effortless hands-free site installation, all while keeping costs to a minimum. Long-term safe working load = 4.3 kN. Long-term safe working load with enhanced nailing = 8.6 kN.
CHARACTERISTICS
- Unique hands-free installation,
- Qualified for use with various nail types,
- Requires fewer nails,
- Can be face-fixed or top-fixed,
- Enhanced load carrying option,
- Suitable for use on solid EWP or I-Joists.
FIXING INSTRUCTIONS for 45x240mm Top Fix I-Joist Hanger
- Fill all standard round holes with either 2.65 x 40mm, 2.8 x 40mm, or 3.4 x 35mm ring-shank nails, or 3.75 x 30mm square twist nails.
- Fill diamond-shaped holes for enhanced installation to I-Joists with backer blocks or solid LVL or Glulam headers.
- The hanger's unique hands-free design securely positions it on I-Joist headers, freeing the installer's hands for easier installation.
SPECIFICATION
- 0.7mm pre-galvanized mild steel EN 10346 DX51D Z275.
I-Joist-Hangers_data_sheet.pdf
