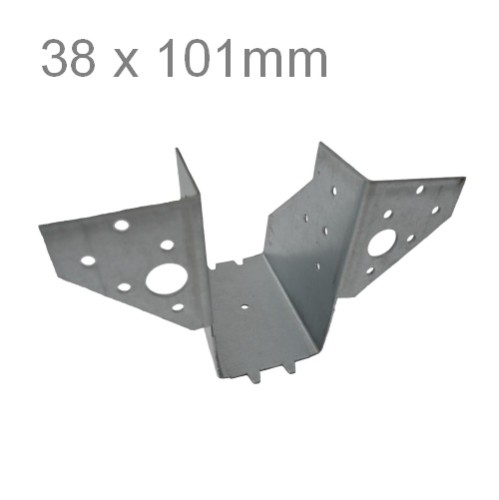

Multifunctional Mini Joist Hanger 38 x 101mm

Multifunctional Mini Joist Hanger 38 x 101mm
Multifunctional Mini Joist Hanger 38 x 101mm
  • Product Code: U1312
  • Delivery Time: 1 - 2 days
  • Brand: Teco
  • Model and Size: MFM - 38x101
  • Weight: 0.23kg
Request product details

Multifunctional Mini Joist Hanger 38 x 101mm

38mm x 101mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275 using 1.2mm thick pre-galvanised mild steel. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or even nailed.

FIXING INSTRUCTIONS
It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.

SPECIFICATION

  • Location tabs aid fast accurate alignment of the hanger
  • M12 bolt holes
  • 85mm bearing
  • Also available in Stainless Steel
  • Tested by Ceram Research
