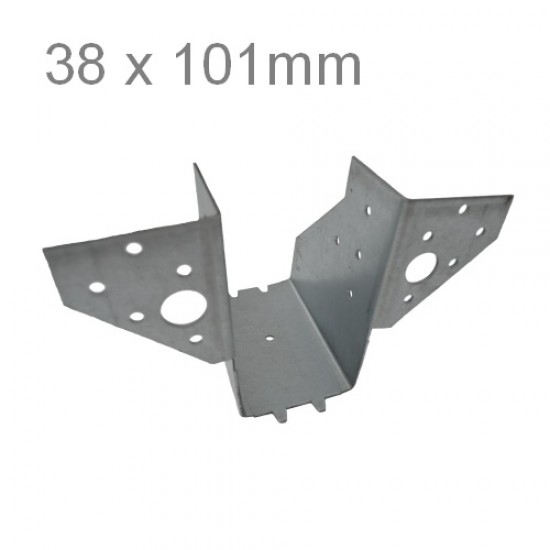

Multifunctional Mini Joist Hanger 38 x 101mm

Multifunctional Mini Joist Hanger 38 x 101mm
Multifunctional Mini Joist Hanger 38 x 101mm
  • Product Code: U1312
  • Delivery Time: 1 - 2 days
  • Brand: Teco
  • Model and Size: MFM - 38x101
  • Weight: 0.23kg
Request product details

Multifunctional Mini Joist Hanger 38 x 101mm

38mm x 101mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275 using 1.2mm thick pre-galvanised mild steel. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or even nailed.

FIXING INSTRUCTIONS
It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.

SPECIFICATION

  • Location tabs aid fast accurate alignment of the hanger
  • M12 bolt holes
  • 85mm bearing
  • Also available in Stainless Steel
  • Tested by Ceram Research
Welded Masonry Joist Hanger 50 x 250mm
Brand: Teco Model and Size: WM50x250
Delivery Time: 3 - 5 days
Welded Masonry Joist Hanger 50 x 250mm
50x250mm Masonry Joist Hanger with Welded Construction Elevate the support for your timber joists integrated into brick or block walls with our remarkable 50mm x 250mm Masonry Joist Hanger. Engineered to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suitable ..
44 x 250mm Welded Return Hanger R100mm
Brand: Teco Model and Size: WR44X250R100
Delivery Time: 3 - 5 days
44 x 250mm Welded Return Hanger R100mm
44mm x 250mm Welded Return Joist Hanger R100mm, designed for a range of applications and installation scenarios, similar to the standard Masonry Joist Hanger. The return feature provides enhanced lateral support by wrapping around the rear of masonry or timber elements. Standard configuration includ..
47 x 100mm Masonry Return Hanger R115mm
Brand: Teco Model and Size: FHMR47X100R115
Delivery Time: 1 - 2 days
47 x 100mm Masonry Return Hanger R115mm
47 x 100mm Masonry Return Hanger R115mm is designed for similar applications and installation as the standard Masonry Joist Hangers. The return adds additional lateral support by wrapping around the back of the masonry or timber. There is a 25mm drop on the return flange as standard but many special..
47 x 100mm Masonry Return Hanger R150mm
Brand: Teco Model and Size: FHMR47X100R150
Delivery Time: 1 - 2 days
47 x 100mm Masonry Return Hanger R150mm
47 x 100mm Masonry Return Hanger R150mm is designed for similar applications and installation as the standard Masonry Joist Hangers. The return adds additional lateral support by wrapping around the back of the masonry or timber. There is a 25mm drop on the return flange as standard but many special..
Welded Masonry Joist Hanger 44 x 300mm
Brand: Teco Model and Size: WM44x300
Delivery Time: 3 - 5 days
Welded Masonry Joist Hanger 44 x 300mm
44x300mm Masonry Joist Hanger with Welded Construction Experience exceptional support for your timber joists embedded in brick or block walls with our top-of-the-line 44mm x 300mm Masonry Joist Hanger. Designed to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suita..
47 x 200mm Masonry Return Hanger R100mm
Brand: Teco Model and Size: FHMR47X200R100
Delivery Time: 1 - 2 days
47 x 200mm Masonry Return Hanger R100mm
47 x 200mm Masonry Return Hanger R100mm is designed for similar applications and installation as the standard Masonry Joist Hangers. The return adds additional lateral support by wrapping around the back of the masonry or timber. There is a 25mm drop on the return flange as standard but many special..
