Mini Mini Joist Hanger 50 x 65mm

Mini Mini Joist Hanger 50 x 65mm
Mini Mini Joist Hanger 50 x 65mm
  • Product Code: U1311
  • Delivery Time: 1 - 2 days
  • Brand: Teco
  • Model and Size: MMINI - 50x65
  • Weight: 0.10kg
Request product details

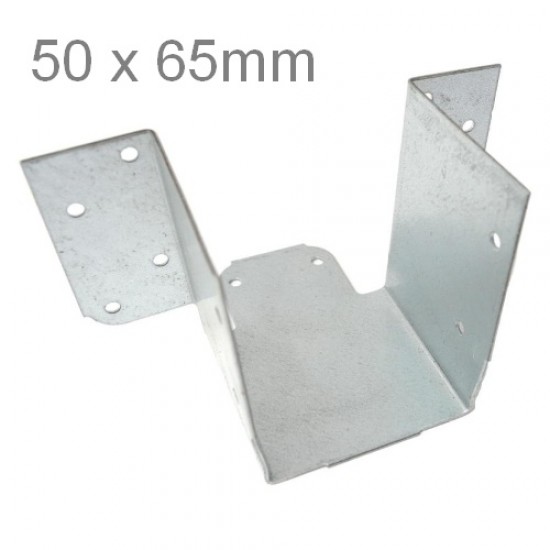

Mini Mini Joist Hanger 50 x 65mm

50x65mm Mini Mini Joist Hanger is a timber to timber joist hanger suitable for light duty applications such as trimmers, ceiling joists and decking.

The hanger is produced using pre-galvanised milk steel which is 1mm thick with a tag on the base of the hanger to help avoid rotation and aid fast, accurate positioning. This tag can easily be bent for easy installation. The joist bearing is 50mm. Long term safe working load = 3.47 kN.

FIXING INSTRUCTIONS
All holes should be nailed using 30 x 3.75 Square Twist Nails or equivalent

SPECIFICATION

  • Galvanised Steel EN 10346 DX51D Z275,
  • Test by CERAM Research Ltd Notification Body No. 1289.
Welded Straddle Hanger 63 x 200mm, 100ST
Brand: Teco Model and Size: WS63x200S100
Delivery Time: 3 - 5 days
Welded Straddle Hanger 63 x 200mm, 100ST
63mm x 200mm Masonry Straddle Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The Masonry Straddle hanger consists of two hangers joined together by a plate on the masonry flange. This design enables precise alignment of two joists position..
90 x 250mm Welded Return Hanger R100mm
Brand: Teco Model and Size: WR90X250R100
Delivery Time: 3 - 5 days
90 x 250mm Welded Return Hanger R100mm
90mm x 250mm Welded Return Joist Hanger R100mm, designed for a range of applications and installation scenarios, similar to the standard Masonry Joist Hanger. The return feature provides enhanced lateral support by wrapping around the rear of masonry or timber elements. Standard configuration includ..
Woody Long Leg Joist Hanger 100 x 450mm
Brand: Teco Model and Size: LL - 100x450
Delivery Time: 1 - 2 days
Woody Long Leg Joist Hanger 100 x 450mm
Woody Long Leg Joist Hanger 100 x 450mm, crafted from sturdy 1.5mm thick pre-galvanized mild steel in accordance with the exacting standards of EN 10346 DX51D+Z275. Boasting a generous 50mm joist bearing, this timber-to-timber joist hanger is designed for applications such as Loft Conversions, where..
Multifunctional Joist Hanger 90 x 128mm
Brand: Teco Model and Size: MFT90/346BA - 90x128
Delivery Time: 1 - 2 days
Multifunctional Joist Hanger 90 x 128mm
90mm x 128mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber f..
Welded Masonry Joist Hanger 44 x 300mm
Brand: Teco Model and Size: WM44x300
Delivery Time: 3 - 5 days
Welded Masonry Joist Hanger 44 x 300mm
44x300mm Masonry Joist Hanger with Welded Construction Experience exceptional support for your timber joists embedded in brick or block walls with our top-of-the-line 44mm x 300mm Masonry Joist Hanger. Designed to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suita..
Welded Masonry Joist Hanger 90 x 275mm
Brand: Teco Model and Size: WM90x275
Delivery Time: 3 - 5 days
Welded Masonry Joist Hanger 90 x 275mm
90x275mm Masonry Joist Hanger with Welded Construction Elevate the support for your timber joists integrated into brick or block walls with our remarkable 90mm x 275mm Masonry Joist Hanger. Engineered to withstand a minimum crushing strength of 3.5N/mm, this versatile hanger is also suitable ..
