Woody Mini Joist Hanger 38 x 100mm

Woody Mini Joist Hanger 38 x 100mm
Woody Mini Joist Hanger 38 x 100mm
  • Product Code: U1385
  • Delivery Time: 1 - 2 days
  • Brand: Teco
  • Model and Size: MINI - 38x100
  • Weight: 0.12kg
Request product details

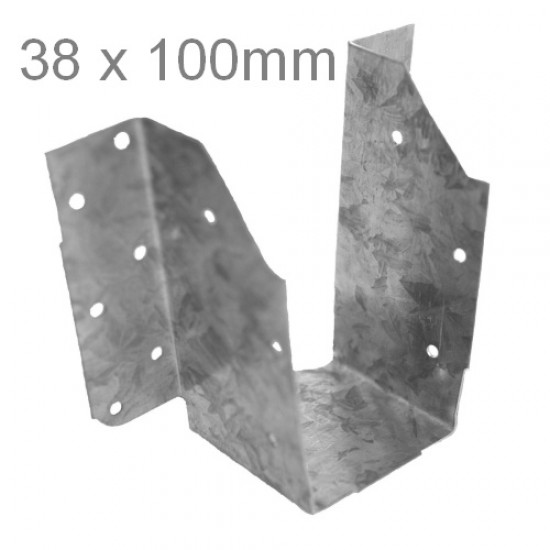

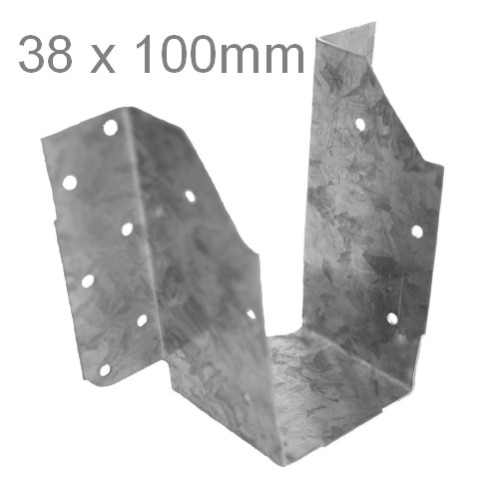

Woody Mini Joist Hanger 38 x 100mm

38x100mm Woody Mini Joist Hanger is produced in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275 using 1mm thick pre-galvanised mild steel. Also available in stainless steel. The hanger includes a base tag that can significantly contribute to faster and more accurate installation This base tag would help to avoid unnecessary rotation. The product offers substantial safe working load of 5.25kN at 1.5mm deflection, meaning that there is no fear of the hanger breaking if the given load and strength characteristic of 12.5kN are respected. Long term safe working load = 3.96 kN.

FIXING INSTRUCTIONS
All holes should be nailed using 30 x 3.75 square twist nails or equivalent.
For stainless steel products use 30 x 3.75 stainless steel annular ring shank nails.

SPECIFICATION
Woody Mini Joist Hangers have been tested by Ceram Research and shown to be high quality. The test results are available upon request.
47 x 150mm Masonry Return Hanger R100mm
Brand: Teco Model and Size: FHMR47X150R100
Delivery Time: 1 - 2 days
47 x 150mm Masonry Return Hanger R100mm
47 x 150mm Masonry Return Hanger R100mm is designed for similar applications and installation as the standard Masonry Joist Hangers. The return adds additional lateral support by wrapping around the back of the masonry or timber. There is a 25mm drop on the return flange as standard but many special..
Multifunctional Joist Hanger 76 x 135mm
Brand: Teco Model and Size: MFT76/346BA - 76x135
Delivery Time: 1 - 2 days
Multifunctional Joist Hanger 76 x 135mm
76mm x 135mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber f..
75 x 225mm Welded Return Hanger R100mm
Brand: Teco Model and Size: WR75X225R100
Delivery Time: 3 - 5 days
75 x 225mm Welded Return Hanger R100mm
75mm x 225mm Welded Return Joist Hanger R100mm, designed for a range of applications and installation scenarios, similar to the standard Masonry Joist Hanger. The return feature provides enhanced lateral support by wrapping around the rear of masonry or timber elements. Standard configuration includ..
Multifunctional Joist Hanger 44 x 151mm
Brand: Teco Model and Size: MFT44/346BA - 44x151
Delivery Time: 1 - 2 days
Multifunctional Joist Hanger 44 x 151mm
44mm x 151mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber f..
Multifunctional Joist Hanger 38 x 154mm
Brand: Teco Model and Size: MFT38/346BA - 38x154
Delivery Time: 1 - 2 days
Multifunctional Joist Hanger 38 x 154mm
38mm x 154mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber f..
Heavy Duty Face Fix Joist Hanger 90 x 150mm
Brand: Teco Model and Size: HWTNT90
Delivery Time: 2 - 3 Days
Heavy Duty Face Fix Joist Hanger 90 x 150mm
Heavy Duty Face Fix Joist Hanger 90 x 150mm, crafted for timber-to-timber, concrete, or masonry installations. Made from durable 2.5mm thick pre-galvanized mild steel, this hanger adheres to the exacting standards outlined in BS EN 10327:2004 DX51D+Z275. SPECIFICATION A..
