Welded Straddle Hanger 75 x 200mm, 100ST
Welded Straddle Hanger 75 x 200mm, 100ST
- Product Code: U1478
- Delivery Time: 3 - 5 days
- Brand: Teco
- Model and Size: WS75x200S100
- Weight: 2.80kg
Welded Straddle Hanger 75 x 200mm, 100ST

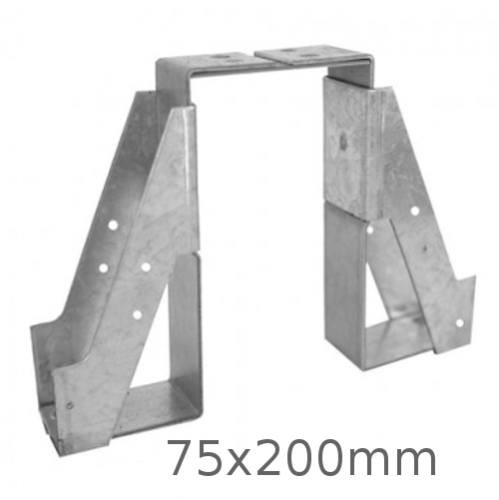

75mm x 200mm Masonry Straddle Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The Masonry Straddle hanger consists of two hangers joined together by a plate on the masonry flange. This design enables precise alignment of two joists positioned directly opposite each other on either side of a wall or beam. Crafted from 2.4mm thick Galvanized steel EN 10346 DX51D Z275, the hanger ensures a long-term safe working load of 3.5 kN.
INSTALLATION of 75x200mm Welded Straddle Hanger 100ST
- The back plate of the hanger should rest flat against the vertical masonry support.
- Masonry flange should have a minimum of 3 courses (675mm masonry) above.
- Both supporting and above masonry should be allowed to cure before any load is applied.
- Joist should be square-cut and sit snugly against the back of the hanger - maximum gap allowed is 6mm.
- Nail the side flanges with 30 x 3.75mm galvanized square twist nails or equivalent.
- Use heavy-duty straps for lateral restraint.
- The masonry flange should always be securely fixed or adequately embedded and should never be placed in dry slots.
- Ensure appropriate fixings are used.
- Always use compatible corrosion-resistant fixings; avoid mixing galvanized fixings with stainless steel products.
- Use mortar of correct strength as per British Standard.
Masonry-Straddle-Hangers_data_sheet.pdf
