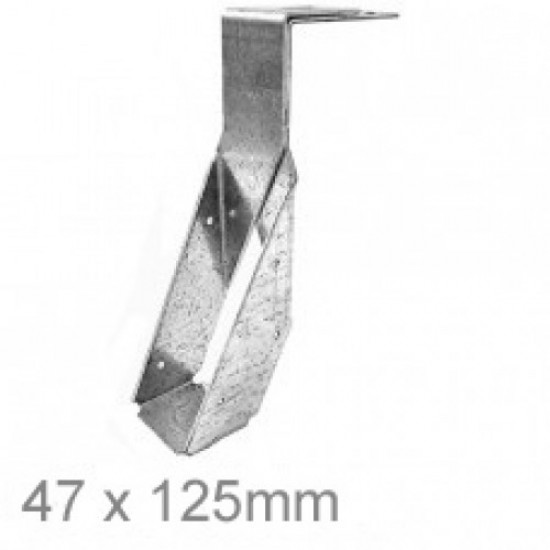

Single Piece Masonry Hanger 47 x 125mm

47mm x 125mm Single Piece Joist Hanger is designed to support timber joists built into brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber-to-timber applications by securely fixing the masonry flange to timber or steel beams using appropriate fixings. The straight top flange and a lock plate allow the hanger to be transformed into a straddle or hook over configuration, without the need for special equipment. The hanger has a long-term safe working load of 5.4 kN.

FIXING INSTRUCTIONS for 47x125mm Single Piece Masonry Hanger

• The back plate of the hanger should lie flat against the vertical masonry support.
• Masonry flange should have a minimum of 3 courses (675mm masonry) above.
• Both supporting and above masonry should be allowed to cure before any load is applied.
• Joist should be square-cut and fit snugly against the back of the hanger - maximum allowable gap is 6mm.
• Nail the side flanges with 30 x 3.75mm galvanized square twist nails or equivalent. For stainless steel hangers, use 30 x 3.75mm annular ring shank nails.
• Utilize HD straps for lateral restraint.
• The masonry flange should always be securely fixed or adequately embedded and must never be placed in dry slots.
• Use appropriate fixings.
• Always ensure that compatible corrosion-resistant fixings are used, i.e., do not mix galvanized fixings with stainless steel products.
• Use mortar of the correct strength as per the British Standard.

SPECIFICATION

• Galvanized steel to EN 10346 DX51D Z600.
• Tested by CERAM Research Ltd Notification Body No.1289.
• Manufactured to EN 845-1:2013.
