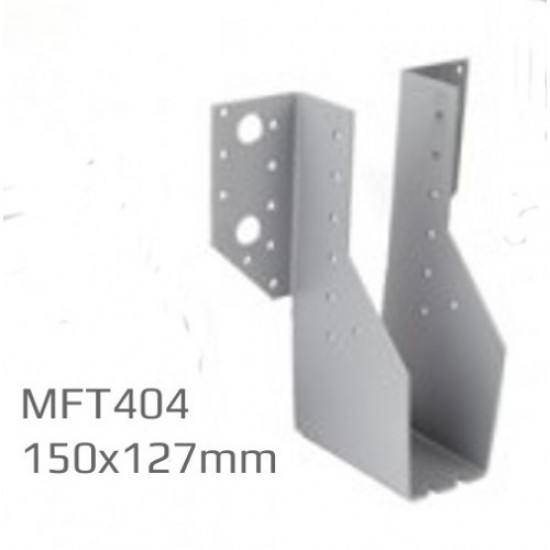

Multifunctional Joist Hanger 150 x 127mm

Multifunctional Joist Hanger 150 x 127mm
Multifunctional Joist Hanger 150 x 127mm
  • Product Code: U1427
  • Delivery Time: 1 - 2 days
  • Brand: Teco
  • Model and Size: MFT150/404BA - 150x127
  • Weight: 0.50kg
Request product details

Multifunctional Joist Hanger 150 x 127mm

150mm x 127mm Multifunctional Joist Hanger serves as a Face Fix Joist Hanger, constructed from 2mm thick pre-galvanized mild steel in accordance with the specifications outlined in BS EN 10327:2004 DX51D+Z275. This hanger is meticulously designed to facilitate timber-to-masonry and timber-to-timber fixings. It features strategically positioned base location tabs and an associated hole configuration, including 2 x M12 bolt holes and 19 x nail or screw holes. It accommodates various fastening methods such as bolting, screwing, coach screwing, or nailing. The established long-term safe working load remains 8.25 kN.


Installation Guidelines

During installation, it is recommended to utilize 30 x 3.75 Square Twisted nails for securing the designated holes. To prevent undesirable rotation, ensure the hanger extends beyond at least half (60%) the depth of the supported member.

Specifications

  • Location tabs aid in swift and precise alignment of the hanger.
  • M12 bolt holes facilitate sturdy fastening.
  • An 85mm bearing ensures optimal load distribution.
  • Also offered in a Stainless Steel variant for enhanced durability.

Thoroughly examined and certified by Ceram Research.
