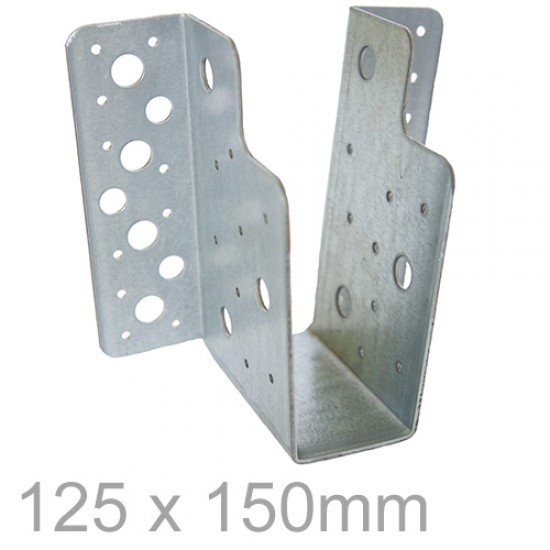

Heavy Duty Face Fix Joist Hanger 125 x 150mm
Heavy Duty Face Fix Joist Hanger 125 x 150mm
- Product Code: U1437
- Delivery Time: 2 - 3 Days
- Brand: Teco
- Model and Size: HWTNT125
- Weight: 0.88kg
Heavy Duty Face Fix Joist Hanger 125 x 150mm
Heavy Duty Face Fix Joist Hanger 125 x 150mm, crafted for timber-to-timber, concrete, or masonry installations. Made from durable 2.5mm thick pre-galvanized mild steel, this hanger adheres to the exacting standards outlined in BS EN 10327:2004 DX51D+Z275.
SPECIFICATION
- Accommodates joists up to 150mm in depth
- M10 & M12 bolt holes enhance versatility
- 95mm bearing
- Nominal depth of 150mm
- Available in standard configuration or with concealed flanges
- Also available in stainless steel
- To prevent rotation, ensure the hanger extends beyond half the depth of the supported member
- Multiple installation methods: full nailing, coach screwing, and bolting
- Secure with 3 M10 x 75mm Coach Screws on each side, and fasten the supported joist through the hanger with an M12 Bolt
- Safe working load is influenced by block strength and chosen fixings
Face-Fix-Hangers_data_sheet.pdf
